Model No.： TGr-MFZL -G
Min. Order： 2000pcs
Trade Terms：FOB, CNF, CIF
Payment Terms ："T/T, L/C

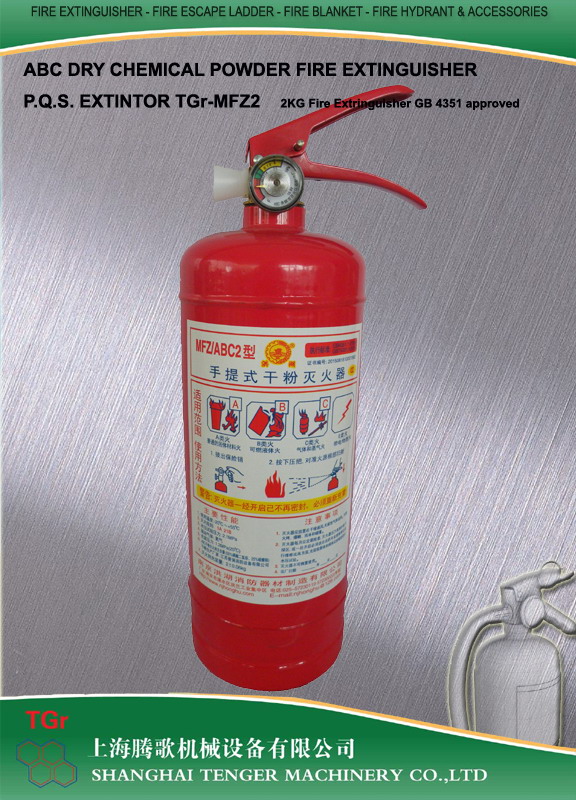

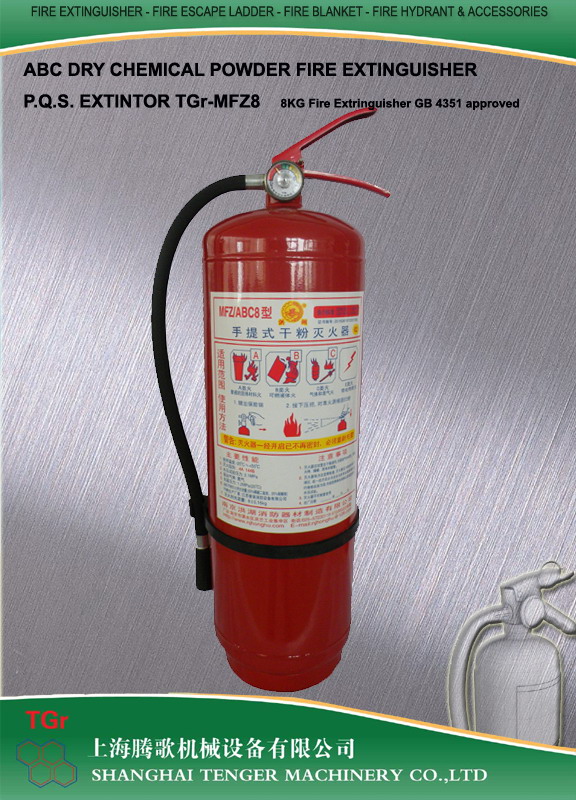

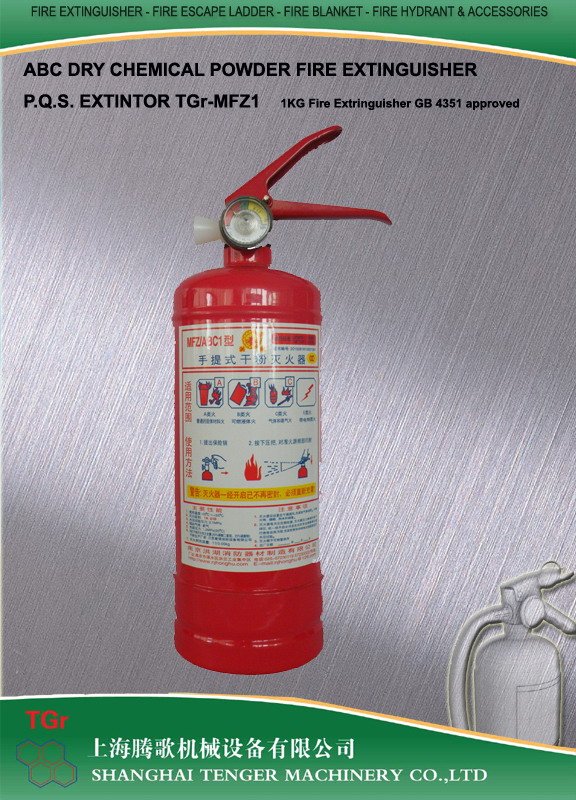

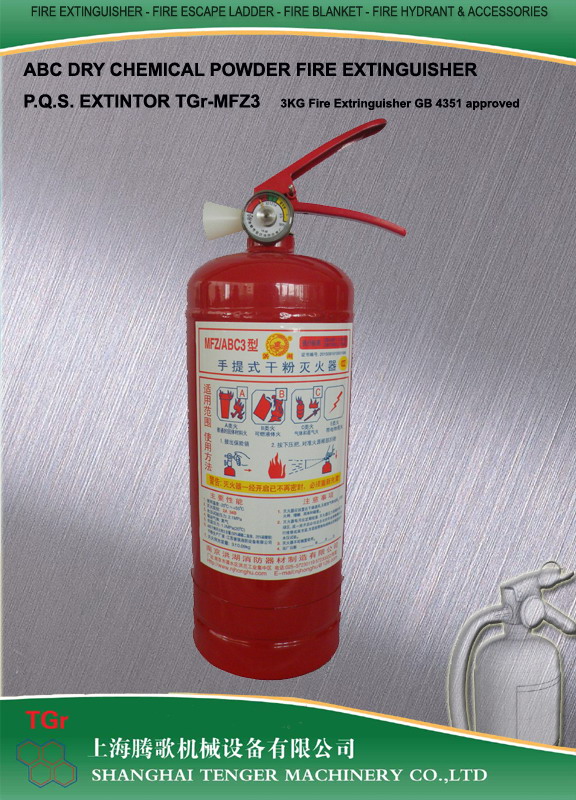

Inquiry NowABC Dry Powder Fire Extinguisher
GB4351 Approved
| Items | MFZL1 | TGr-MFZ2 | TGr-MFZ3 | TGr-MFZ4 | TGr-MFZ5 | TGr-MFZ8 |
| Cylinder size (mm) | D90XH240 | D110xH310 | D130XH320 | D130XH405 | D150XH420 | D173XH490 |
| Cylinder material | ST12 | ST12 | ST12 | ST12 | ST12 | ST12 |
| Cylinder weight (g) | 650 | 1100 | 1550 | 1950 | 2200 | 2800 |
| Cylinder capacity (L) | 1.25 | 2.55 | 3.75 | 5.1 | 6.2 | 10 |
| Working pressure (Bar) | 12 | 12 | 12 | 12 | 12 | 12 |
| Test pressure (Bar) | 25 | |||||
| Working temperature (℃) | -30℃ to +60℃ | |||||
| Propellant gas | N2 | |||||
| Fire Extinguisher Mesa (cm) | D90XH310 | D110XH380 | D130XH390 | D130XH500 | D150XH490 | D173XH570 |
| Product weight (g) | 1760 | 3.3kg | 4.75kg | 6.3kg | 7.6kg | 11.2kg |
| Master carton size (cm) | 48X19X33/10PCS | 35X23X40/6PCS | 27X27X41/4PCS | 27X14X50/2PCS | 31X16X50/2PCS | |
| Fire Extinguisher agent | 75% ABC dry chemical powder | |||||
| 1000g+20g | 2Kg+40g | 3kg+60g | 4kg+80g | 5kg+100g | 8Kg+150g | |
This serial products are for China Domestic Market, If you need this serial product, please view our Chinese page, and contact with our sales engineer.
