Model No.： TGr-MFZL-E
Min. Order： 1000pcs
Trade Terms：FOB,CNF,CIF
Payment Terms ："T/T,L/C
Inquiry NowPortable ABC Dry Powder Fire Extinguisher
CE Approved
Products series specification
Items | TGr-MFZL1-E | TGr-MFZL2-E | TGr-MFZL3-E | TGr-MFZL4-E | TGr-MFZL6-E | TGr-MFZL9-E | TGr-MFZL12-E |
Cylinder size(mm) | D85XH285 | D110XH315 | D130XH325 | D130XH425 | D160XH445 | D180XH490 | D180XH650 |
Cylinder material | ST12 | ||||||
Cylinder weight(kg) | >0.68 | >1.15 | >1.7 | >2.0 | >2.7 | >3.2kg | >4.8Kg |
Cylinder capacity(L) | 1.30 | 2.60 | 3.8 | 5.1 | 7.80 | 11.8L | 14.50L |
Working pressure(Bar) | 14 | ||||||
Test pressure(Bar) | 29 | ||||||
Safety valve operation pressure(Bar) | 22 | ||||||
Working temperature oC | -30~+60 | ||||||
Propellant gas | Nitrogen | ||||||
Declare fire rate | 8A 21B C | 13A 34B C | 13A 89B C | 27A 89B C | 27A 144B C | 34A 183B C | 55A 233B C |
Reference fire rate | 8A 34B C | 13A 55B C | 34A 113B C | 43A 183B C | 55A 233B C | ||
Fire Extinguisher Mesa (mm) | D85XH340 | D110XH400 | D130XH410 | D130XH510 | D160XH550 | D180XH600 | D180XH740 |
Product weight | 2000g+20g | 3.5kg+50g | 5.2kg+100g | 6.6Kg+100g | 9.3Kg+100g | 13.2kg+0.2kg | 17.5Kg+0.2kg |
Inner Package size (cm) | L9XW9XH35 | L12XW10XH41 | L15XW14XH43 | L15XW14XH53 | L17XW17XH55 | L20XW19XH62 | L20XW19XH75 |
Master cartpn size (cm) | 45X19X36/10pcs | 24X23X42/4pcs | 28X14X43/2pcs | 28X14X53/2pcs | 17X17X55/1pc | 20X19X62/1pc | 20X19X75/1pc |
Fire Extinguisher agent | EN 615 40% ABC dry chemical powder | ||||||
1000g+20g | 2000g+40g | 3000g+60g | 4000g+80g | 6kg+120g | 9.0kg+150g | 12kg+250g | |
Notice:

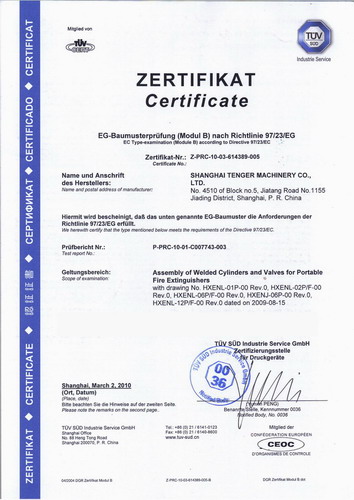

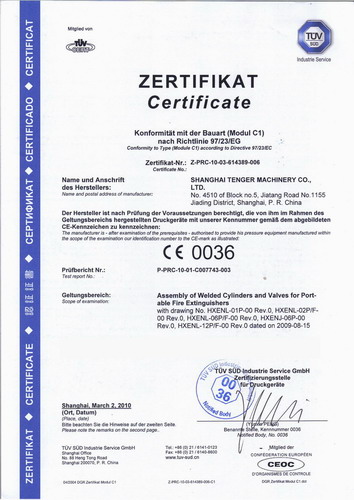

* This product is CE0036 and CE0029 approved for PED 97/23 fire extinguisher. The OEM service is valid, the parts can change with CE approved fire extinguisher valve and gauge against customer needs!
* The products must under periodically check. If the product gauge pointer is not in the green zone, the fire extinguisher need send to professional maintenance immediately!
* The Fire Extinguisher is not a toy; please keep away from kid without training!
* Products warranty is 4years, please send to professional maintenance in time before the expiry. The manufacture time shows on the products body stamp.
