Model No.： TGr-MFZL12-E
Min. Order： 300pcs, no limit by FCL delivery
Trade Terms：FOB,CNF,CIF
Payment Terms ："T/T,L/C
Inquiry Now12kg ABC Dry Powder Fire Extinguisher
CE Approved
TGr-MFZL12-E Specification
Items | TGr-MFZL12-E |
Cylinder size(mm) | D180XH650mm or D185XH550 |
Cylinder material | ST12 |
Cylinder weight(kg) | >4.8Kg |
Cylinder capacity(L) | 14.50L |
Working pressure(Bar) | 14Bar |
Test pressure(Bar) | 29Bar |
Safety valve operation pressure(Bar) | 22Bar |
Working temperature oC | -30oC~+60oC |
Propellant gas | Nitrogen |
Declare fire rate | 55A 233B C |
Reference fire rate | |
Fire Extinguisher Mesa (mm) | D180XH740mm or 185XH650 |
Product weight | 17.5Kg+0.2kg |
Inner Package size (cm) | L20XW19XH75cm or L20XW20XH67 |
Master cartpn size (cm) | 20X19X75cm/1pcs or 20X20X67cm/1pc |
Fire Extinguisher agent | EN 615 40% ABC dry chemical powder |
12kg+250g |
Notice:

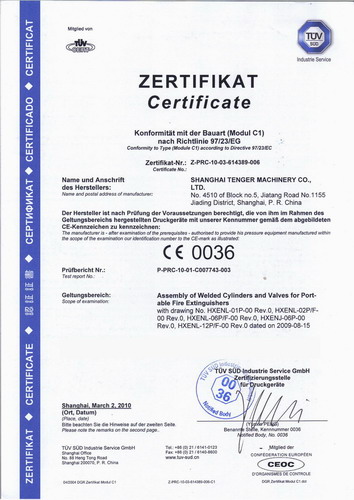

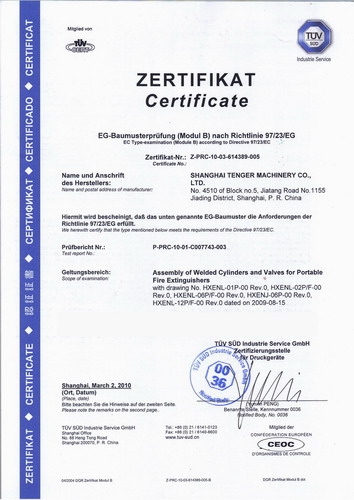

* This product is CE0036 and CE0029 approved for PED 97/23 fire extinguisher. The OEM service is valid, the parts can change with CE approved fire extinguisher valve and gauge against customer needs!
* The products must under periodically check. If the product gauge pointer is not in the green zone, the fire extinguisher need send to professional maintenance immediately!
* The Fire Extinguisher is not a toy; please keep away from kid without training!
* Products warranty is 4years, please send to professional maintenance in time before the expiry. The manufacture time shows on the products body stamp.
