Model No.： TGr-MFZL*-U
Min. Order： 2000pcs Or FCL
Trade Terms：FOB,CNF,CIF
Payment Terms ："T/T,L/C
Inquiry NowPortable ABC Dry Powder Fire Extinguisher
America UL and NFPA Standard
Products series specification

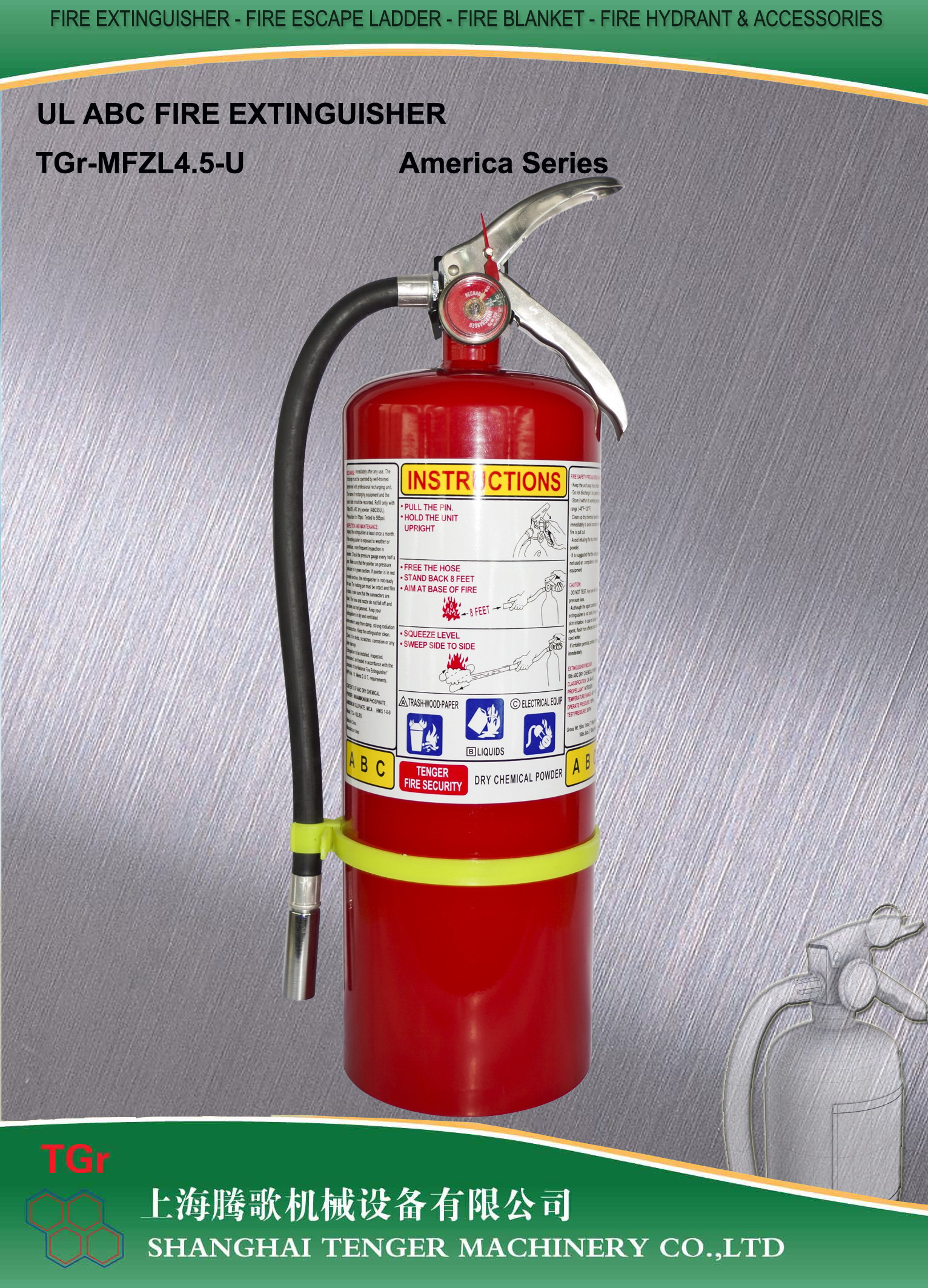

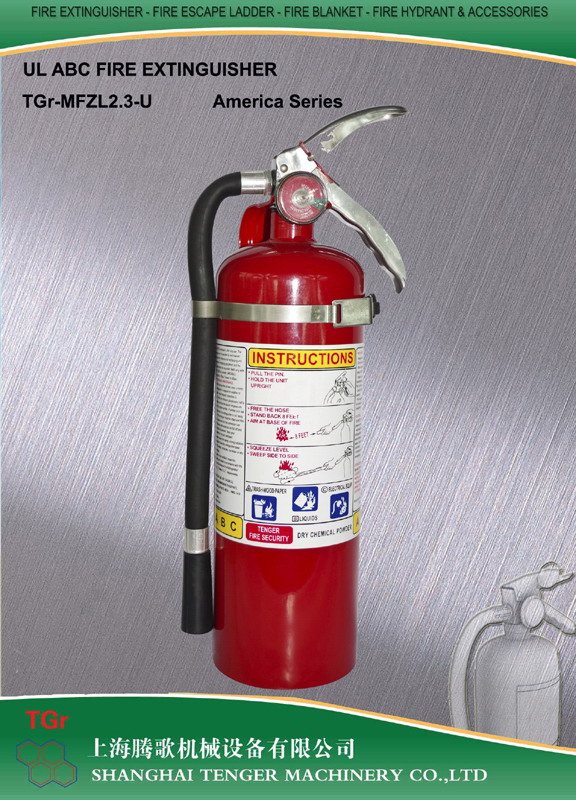

TGr-MFZL*-U Specification
| TGr-MFZL1.1U | TGr-MFZL2.3U | TGr-MFZL4.5U | TGr-MFZL9U | |
| Cylinder size | D90XH280mm | D110XH345mm | D150XH390mm | D180XH490mm |
| Cylinder material | ST12 | |||
| Cylinder weight | >780g | >1250g | >2.9Kg | >3.7kg |
| Cylinder capacity | 1.40L | 2.80L | 5.8L | 11L |
| Working pressure | 14Bar | |||
| Test pressure | 27Bar | |||
| Working temperature | -40oF~+120oF | |||
| Propellant gas | Nitrogen | |||
| Declare fire rate | 1A -10B C | 2A -20B C | 4A -80B C | 20A -120B C |
| Fire Extinguisher Mesa | D90XH350mm | D110XH410mm | D150XH500mm | D180XH600mm |
| Product weight | 2100g+20g | 3.6kg+50g | 9.7Kg+100g | 13.5kg+0.2kg |
| Inner Package size | L9XW9XH35cm | L12XW10XH41cm | L17XW17XH55cm | L20XW19XH62cm |
| Master cartpn size | 49X19X36cm/10pcs | 24X24X42cm/4pcs | 17X17X57cm/1pc | 20X20X63cm/1pc |
| Fire Extinguisher agent | UL 711/EN 615 85% ABC dry chemical powder | |||
Notice:
* This serial product are manufacture according to the UL299 & UL711 & NFPA. The OEM service is valid, the valve and gauge can change against customer needs!
* The products must under periodically check. If the product gauge pointer is not in the green zone, the fire extinguisher need send to professional maintenance immediately!
* The Fire Extinguisher is not a toy; please keep away from kid without training!
* Products warranty is 4years, please send to professional maintenance in time before the expiry. The manufacture time shows on the products body stamp.
