Model No.： TGr-MT
Min. Order： 200/pcs
Trade Terms：FOB， CNF， CIF
Payment Terms ："TT， LC

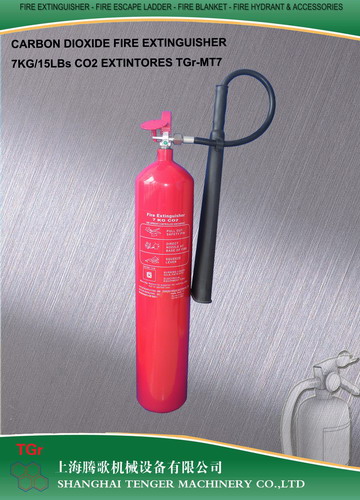

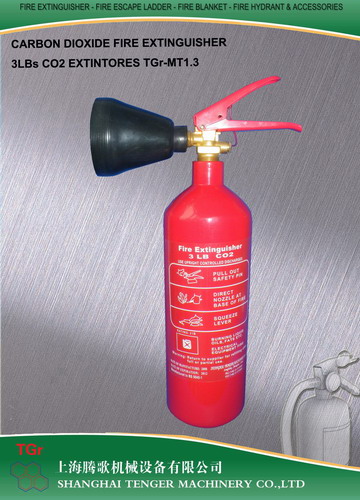

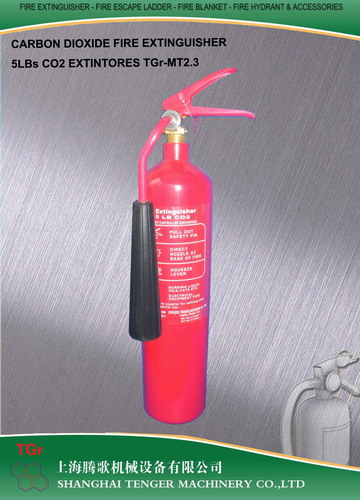

Inquiry NowCabon Dioxide Fire Extinguisher-CK45 product specification
| Item No. | Products Technical Specification | |||||||
| Rate Agent | 1.3kg/ 3LBs | 2kg | 2.3kg/ 5LBs | 3kg | 4.5kg/ 10LBs | 5kg | 6kg | 7kg/15LBs |
| Cylinder Size | D108XH330 | D114XH420 | D114XH475 | D114XH610 | D152XH520 | D152XH570 | D152XH670 | D152XH760 |
| Min wall thickness | 4.2 | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Cylinder weight: | >3.90kg | >5.3kg | >6.0kg | >7.3kg | >12.2kg | >12.5kg | >13.5kg | >16.5kg |
| Cylinder Capacity: | 2L | 3L | 3L | 4.5L | 6.8L | 7.5L | 9L | 10.5L |
| Filling with: | >1.3kg CO2 | >2.0kg CO2 | >2.2kg CO2 | 3.0kg CO2 | >4.4kg CO2 | 5.0kg CO2 | 5.0kg CO2 | 7.0kg CO2 |
| Fire extinguisher N.W: | 5.8kg | 7.8kg | 8.5kg | 11kg | 17kg | 18.5kg | 20.5kg | 25kg |
| Product MEAS: | 16X13X46cm | 17X13X55cm | 17X13X60cm | 17X13X72cm | 23X17X64cm | 22X17X69cm | 22X17X79cm | 22X17X88cm |
| Using Temperature: | -20℃~60℃ | |||||||
| Working pressure: | ≤15Mpa | |||||||
| Test pressure: | 25MPa | |||||||
| Burst pressure: | ≥40Mpa | |||||||
| Discharge time | ≥8s | ≥8s | ≥8s | ≥15s | ≥15s | ≥15s | ≥15s | ≥15s |
| Discharge range: | ≥2m | ≥2.5m | ≥2m | ≥2.5m | ≥2.5m | ≥2.5m | ≥2.5m | ≥2.5m |
*The above-mentioned fire extinguisher cylinder is melt re-structure products by CK45 seamless pipe.
*The materials (steel seamless pipe and electro-paint coating) are no poison effect to human body.
* Welding and assembling tolerances reference by IT15.
*The products filling with 99% CO2 gas. Products UN No. 1044, IMO Class II
*PDS valid for 4 years, product quality warranty for 4 years (except for man-made or other accidents caused cylinder broken, abrasion resulting to the cylinder loss its base anti-pressure capacity). Products produce and QC as the GB-4351, GB 4396, ISO 7165
Notice
* The products must under periodically check. If the product weight is 20% difference with the specification list data, the fire extinguisher need send to profisional maintenance immediately!
* The Fire Extinguisher is not a toy, please keep away from kid without training!
* Products warranty is 4years, please send to profisional maintenance in time before the expriy. The manufacture time show on the products body stamp.
Remarks:
Other cylinder size valid, if you need other size products cylinder and difference valve, please contact with our engineer.
