Model No.： TGr-MPQZ serial
Min. Order： 500pcs
Trade Terms：FOB,CNF,CIF
Payment Terms ："T/T,L/C
Inquiry NowWater/Foam Fire Extinguishers TGr-MPQZ Serial

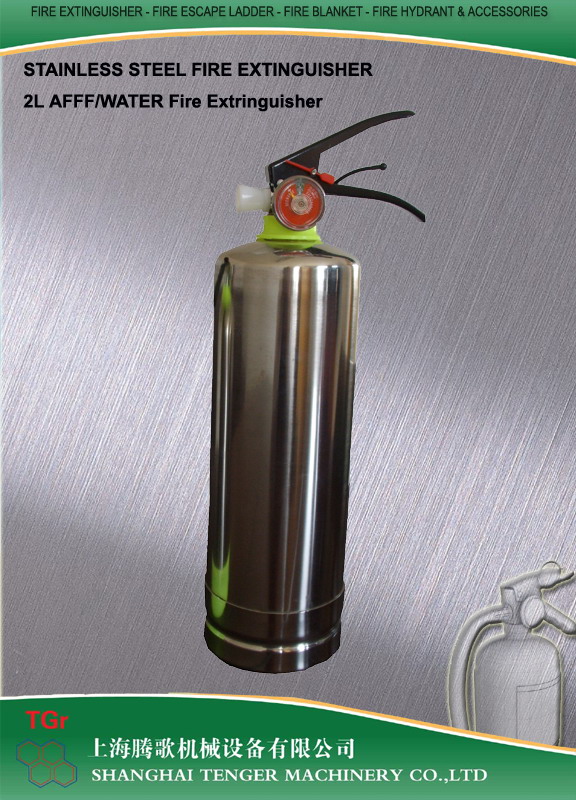

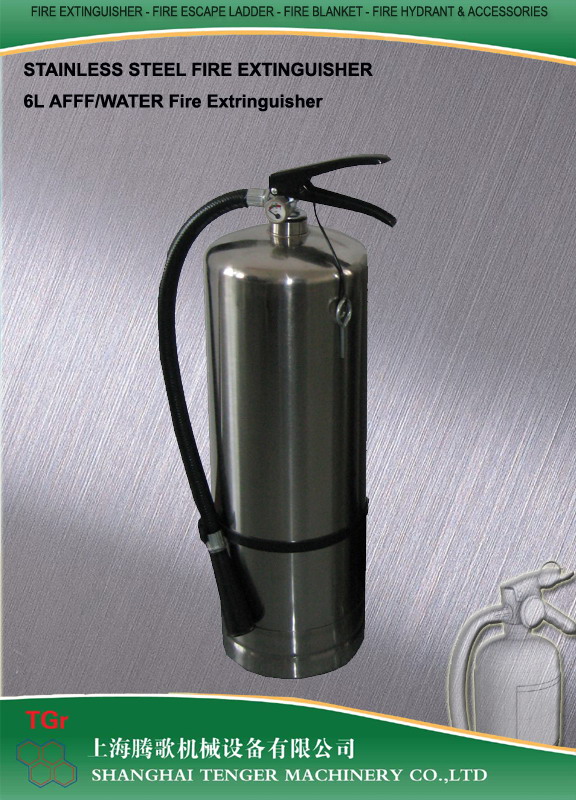

Water/Foam Fire Extinguisher
TGr-MPQZ Searial product specification:
| TGr-MPQZ500 | TGr-MPQZ1 | TGr-MPQZ2 | TGr-MPQZ4 | TGr-MPQZ6 | TGr-MPQZ9 | TGr-MPQZ12 | |
| Cylinder size(mm) | D75XH200 | D85XH280 | D102XH350 | D135XH430 | D150XH465 | D173XH550 | D198XH560 |
| Cylinder material | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 | SS304 |
| Cylinder weight(kg) | 0.4 | 0.53 | 0.75 | 1.7 | 1.9 | 2.35 | 3.2 |
| Cylinder capacity(L) | 0.65 | 1.3 | 2.5 | 5.2 | 7.8 | 11.3 | 15 |
| Min Wall thickness (mm) | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1.2 |
| Working pressure(Bar) | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar | 14Bar |
| Test pressure(Bar) | 29Bar | 29Bar | 29Bar | 29Bar | 29Bar | 29Bar | 29Bar |
| Working temperature(℃) | 0oC~+60oC | 0oC~+60oC | 0oC~+60oC | 0oC~+60oC | 0oC~+60oC | 0oC~+60oC | 0oC~+60oC |
| Propellant gas | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen |
| Declare fire rate | 3A 13B C | 5A 21B C | 8A 34B C | 21A 113B C | 21A 144B C | 27A 144B C | 34A 183B C |
| Fire Extinguisher Mesa(mm) | D75XH260 | D85XH340mm | D102XH420mm | D135XH510mm | D150XH550mm | D173XH630 | D198XH650 |
| Product weight | 1.12 | 1.8 | 3.1 | 6.2 | 8.5 | 11.9 | 15.8 |
| Inner Package size(cm) | L9XW10XH27 | L9XW9XH35 | L12XW12XH43 | ||||
| Master carton size | 41X17X27/10pcs | 47x19x36/10pcs | 22x22x44/4pcs | 15X15X53cm/1pc | 16X16X56cm/1pc | 19X19X65/1PC | 22X22X67/PC |
| Fire Extinguisher agent | 3% AFFF, 6% AFFF, Water, Powder | ||||||
Notice:
* This products is Stainless cylinder fire extinguisher. The OEM service is valid!
* The products must under periodically check. If the product gauge pointer is not in the gree zone, the fire extinguisher need send to profisional maintenance immediately!
* The Fire Extinguisher is not a toy, please keep away from kid without training!
