Model No.： TGr-MT5-Alloy Steel
Min. Order： 200pcs
Trade Terms：FOB， CNF， CIF
Payment Terms ："TT

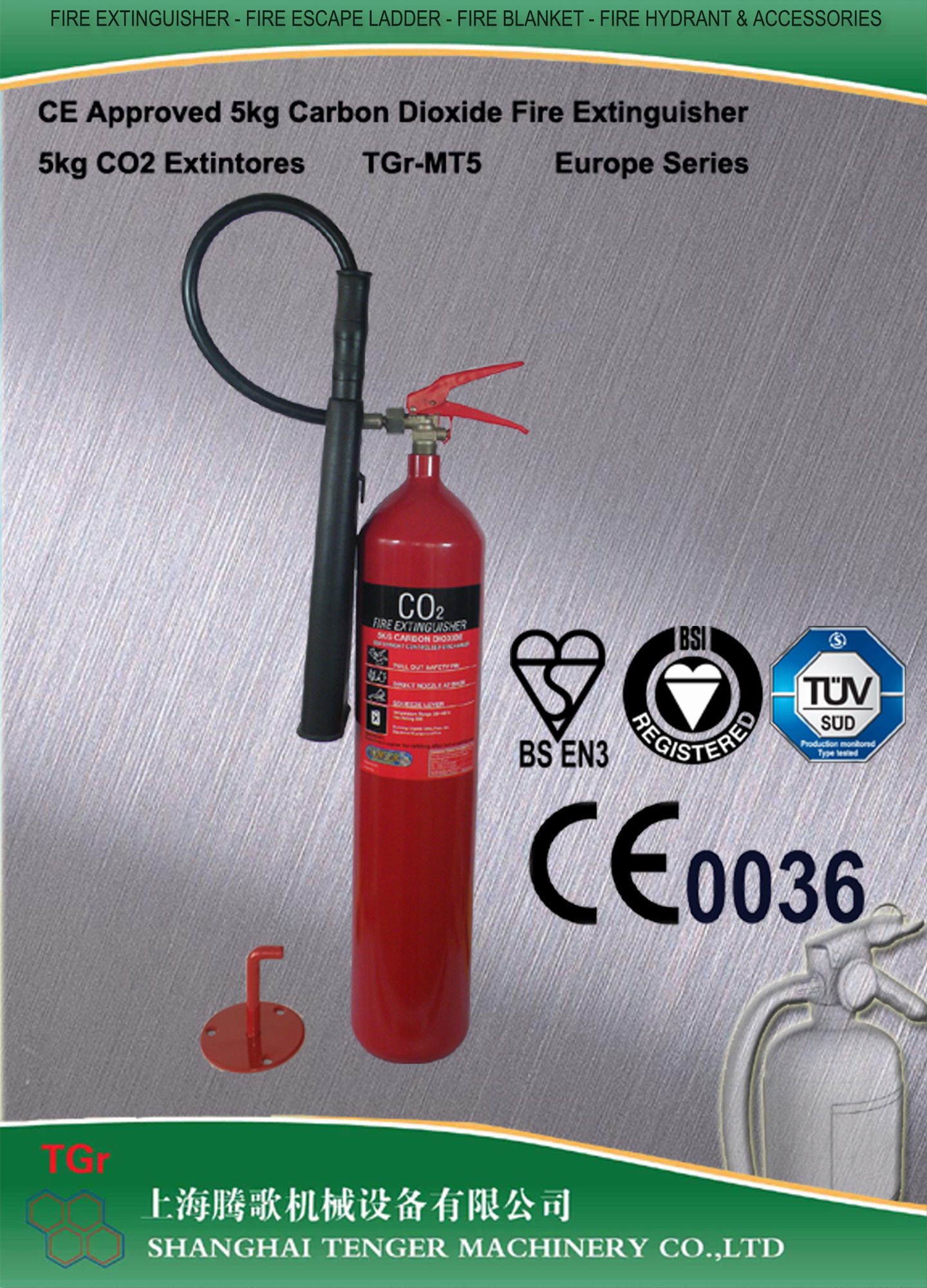

Inquiry Now5kg Cabon Dioxide Fire Extinguisher-34CrMo4 Cylinder product specification
CE 0036 & BS EN3-7 Approved
Fire Rate: 89B
| 5kg /TGr-MT5 | |
| Cylinder Size | D136XH655 |
| Min wall thickness | 3 |
| Cylinder weight: | >7.8kg |
| Cylinder Capacity: | 7.5L |
| Filling with: | 5.0kg CO2 |
| Fire extinguisher N.W: | 14.7kg |
| Product MEAS: | 20X15X77cm |
| Using Temperature: | -20℃~60℃ |
| Working pressure: | ≤15Mpa |
| Test pressure: | 25MPa |
| Burst pressure: | ≥40Mpa |
| Discharge time | ≥8s |
| Discharge range: | ≥2.5m |
*The above-mentioned fire extinguisher cylinder is melt re-structure products by 34CrMo4 seamless pipe.
*The materials (steel seamless pipe and electro-paint coating) are no poison effect to human body.
* Welding and assembling tolerances reference by IT15.
*The products filling with 99% CO2 gas. Products UN No. 1044, IMO Class II
*PDS valid for 4 years, product quality warranty for 4 years (except for man-made or other accidents caused cylinder broken, abrasion resulting to the cylinder loss its base anti-pressure capacity). Products produce and QC against the EN3-7 and PED 97/23
Notice
* The products must under periodically check. If the product weight is 20% difference with the specification list data, the fire extinguisher need send to profisional maintenance immediately!
* The Fire Extinguisher is not a toy, please keep away from kid without training!
* Products warranty is 4years, please send to profisional maintenance in time before the expriy. The manufacture time show on the products body stamp.
